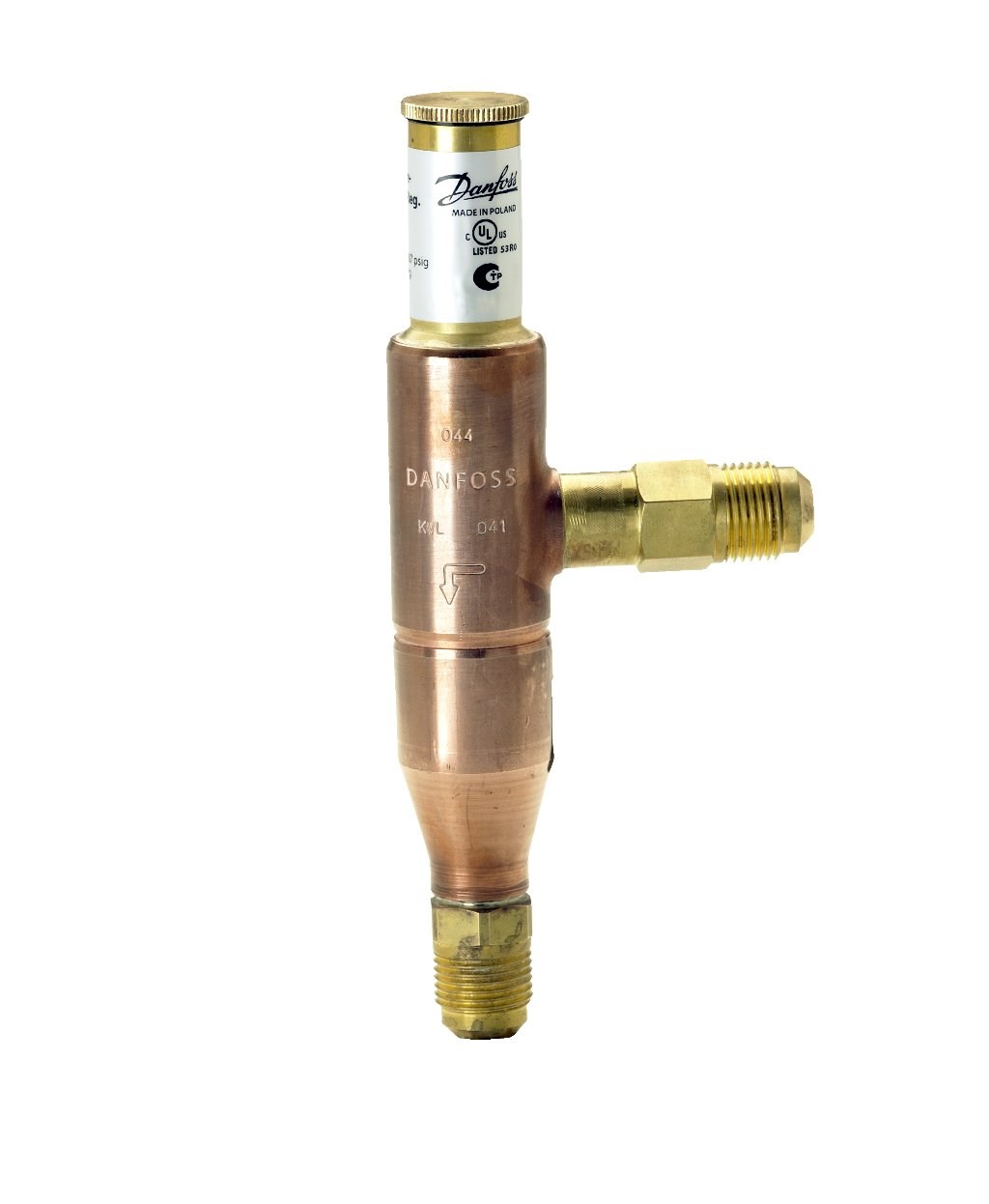

KVL, flare connections
KVL, copper solder connections
KVL, flare connections
034L0041
Regulating range 0.2 - 6.0 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schrader valve for pressure testing.
Max. test pressure
KVL 12 -22 = 28 bar
KVL 28 - 35 = 25.6 bar
Maximum P-band
KVL 12 - 22 = 2.0 bar
KVL 28 - 35 = 1.5 bar
Rated capacities: see technical literature
Add to my
product list
Code number
selector
Product specifications
(59)
Visuals
(6)
Type Code
KVL 12
Weight
0.395 Kg
Approval
C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China
Approval file
REFRIGERANT VALVE 53R0
Cv value
3,700 gpm US
EAN no.
5702428411783
Fact. setting
2,00 bar
Fact. setting
29,0 psig
Flow dir. indicator
Engraved 1-way arrow
More info.
MAX. EXTERN.BELLOW PRESS.26BAR
Inlet type
Flare
Inlet size
1/2 IN
Inlet size
12,00 mm
Kv value
3,200 m3/h
Max. test pressure
19,8 bar
Max. test pressure
286,0 psig
MWP
18,0 bar
MWP
260 Psig
Medium temp.
-60 - 130 °C
Medium temp.
-76 - 266 °F
Outlet type
Flare
Outlet size
1/2 IN
Outlet size
12,00 mm
P band max.
2,0 bar
P band max.
29,0 psi
Pack format
Multi pack
Product accessories
No
Prod. Group
Press. and temp. regul. valves
Prod. name
Crankcase pressure regulator
Pack qty.
12 pc
Rated cap. R134a
5,30 kW
Rated cap. R134a
0,80 TR
Rated cap. R22
7,10 kW
Rated cap. R22
1,20 TR
Rated cap. R404A/R507
6,30 kW
Rated cap. R404A/R507
1,00 TR
Rated cap. R407C
6,50 kW
Rated cap. R407C
1,10 TR
Refrigerant
R1270
Refrigerant
R134a
Refrigerant
R22
Refrigerant
R290
Refrigerant
R404A
Refrigerant
R407A
Refrigerant
R407C
Refrigerant
R407F
Refrigerant
R422B
Refrigerant
R422D
Refrigerant
R448A
Refrigerant
R449A
Refrigerant
R450A
Refrigerant
R452A
Refrigerant
R507A
Refrigerant
R513A
Refrigerant
R600
Refrigerant
R600a
Reg. range
0,2 - 6,0 bar
Regulation range Pe
3,00 - 87,00 psig
Serviceable
KV valves spare parts
